As a supplier of Terminal Distribution Boxes, I often get asked about the mechanical strength of these crucial electrical components. The mechanical strength of a Terminal Distribution Box is a fundamental characteristic that determines its ability to withstand various external forces and environmental conditions while maintaining its functionality.

Understanding Mechanical Strength

Mechanical strength refers to the capacity of a material or structure to resist deformation, breakage, or failure under the influence of mechanical loads. In the context of a Terminal Distribution Box, these loads can include impacts, vibrations, compression, and bending forces. A box with high mechanical strength is better equipped to protect the electrical components inside from damage, ensuring reliable and safe operation.

Factors Affecting Mechanical Strength

1. Material Selection
   The choice of materials plays a significant role in determining the mechanical strength of a Terminal Distribution Box. Common materials used include steel, aluminum, and plastic. Steel is known for its high strength and durability, making it suitable for applications where the box may be exposed to heavy impacts or harsh environments. Aluminum, on the other hand, is lightweight and corrosion-resistant, which is advantageous in certain settings. Plastic boxes are often used for their cost-effectiveness and ease of installation, but they may have lower mechanical strength compared to metal boxes.

2. Design and Construction
   The design and construction of the Terminal Distribution Box also impact its mechanical strength. A well-designed box will have a robust structure with proper reinforcement and support. For example, the use of reinforced corners, thick walls, and internal bracing can enhance the box's ability to withstand external forces. Additionally, the way the box is assembled, including the quality of the joints and fasteners, can affect its overall strength.

3. Environmental Conditions
   The environment in which the Terminal Distribution Box is installed can have a significant impact on its mechanical strength. For instance, boxes installed in outdoor locations may be exposed to extreme temperatures, humidity, and UV radiation, which can cause the materials to degrade over time. In industrial settings, the box may be subjected to vibrations from machinery or heavy equipment, which can also affect its structural integrity.

Importance of Mechanical Strength in Terminal Distribution Boxes

1. Protection of Electrical Components
   The primary function of a Terminal Distribution Box is to house and protect electrical components such as circuit breakers, fuses, and terminals. A box with high mechanical strength can prevent damage to these components from external impacts, ensuring that they continue to function properly. This is crucial for maintaining the safety and reliability of the electrical system.



2. Longevity and Durability
   A Terminal Distribution Box with good mechanical strength is more likely to have a longer lifespan. It can withstand the wear and tear of daily use and environmental factors, reducing the need for frequent replacements. This not only saves costs but also minimizes downtime due to equipment failures.

3. Compliance with Standards
   Many industries have specific standards and regulations regarding the mechanical strength of electrical enclosures. A Terminal Distribution Box that meets these standards ensures compliance and can be used in a wide range of applications. For example, in the industrial sector, boxes may need to meet standards such as NEMA (National Electrical Manufacturers Association) or IEC (International Electrotechnical Commission) ratings.

Assessing the Mechanical Strength of a Terminal Distribution Box

To determine the mechanical strength of a Terminal Distribution Box, several tests can be conducted. These include:

1. Impact Testing
   This involves subjecting the box to a controlled impact using a standardized test method. The box is struck with a specified force, and the extent of damage is evaluated. A box that can withstand the impact without significant damage is considered to have good mechanical strength.

2. Vibration Testing
   Vibration testing simulates the vibrations that the box may experience in its intended application. The box is placed on a vibrating platform and subjected to different frequencies and amplitudes of vibration. The test measures the box's ability to maintain its structural integrity and prevent damage to the internal components.

3. Compression Testing
   Compression testing involves applying a compressive force to the box to determine its resistance to crushing. The box is placed between two plates, and a gradually increasing force is applied until the box fails. The maximum force that the box can withstand before failure is an indication of its mechanical strength.

Our Terminal Distribution Boxes

At our company, we take pride in offering Terminal Distribution Boxes with high mechanical strength. Our boxes are made from high-quality materials and are designed and constructed to meet the highest standards. We use advanced manufacturing techniques to ensure the structural integrity of our boxes, and we conduct rigorous testing to verify their mechanical strength.

Our Terminal Distribution Boxes are suitable for a wide range of applications, including industrial, commercial, and residential settings. Whether you need a box for a small electrical installation or a large-scale industrial project, we have the right solution for you.

In addition to our standard products, we also offer custom solutions to meet your specific requirements. Our team of experienced engineers can work with you to design and manufacture a Terminal Distribution Box that is tailored to your needs.

Related Products

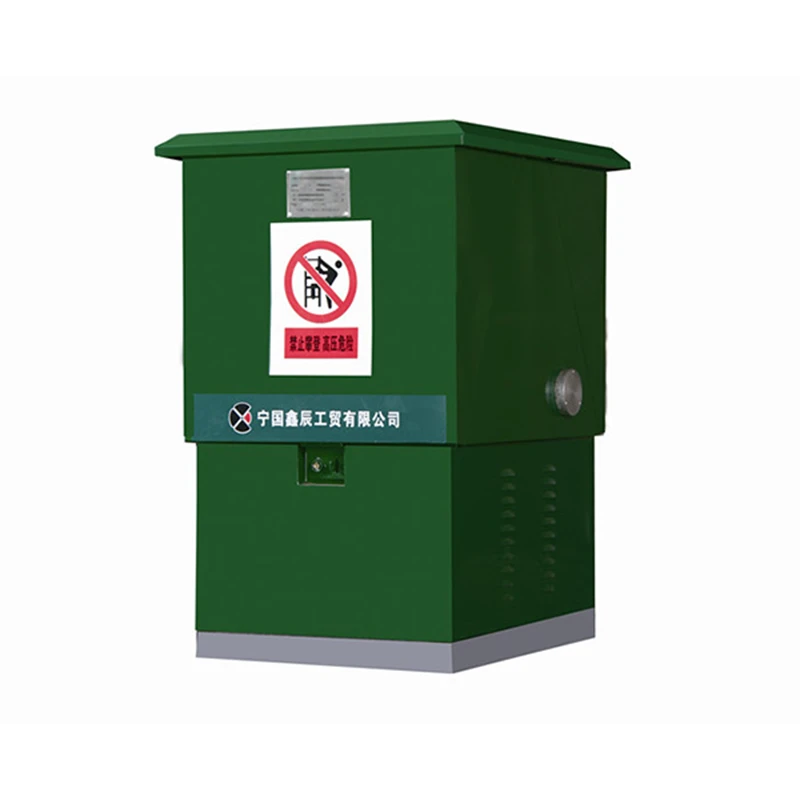

If you are interested in other power distribution products, we also offer Enclosed Switchgear, Distro Power Box, and Low Voltage Distribution Cabinet. These products are designed to work together to provide a comprehensive power distribution solution.

Contact Us for Procurement

If you are looking for high-quality Terminal Distribution Boxes or other power distribution products, we invite you to contact us for procurement. Our team of experts is ready to assist you in selecting the right products for your needs and providing you with competitive pricing. We are committed to providing excellent customer service and ensuring your satisfaction.
