Product Description

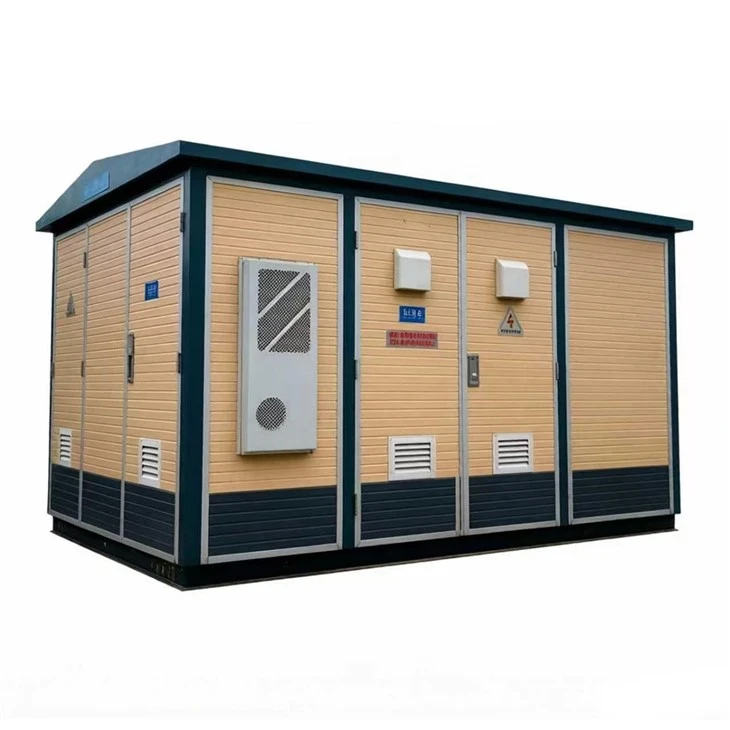

Designed for rapid deployment and maximum space efficiency, our prefabricated compact substation unit represents the pinnacle of modern modular power distribution. We engineer this unit to significantly reduce on-site civil engineering costs and installation times, making it the ideal choice for modern fast-track infrastructure projects. As a highly integrated system, it combines safety, efficiency, and intelligence into a compact footprint. Our team utilizes advanced 3D modeling and automated manufacturing in our 50,583-square-meter facility to ensure that every prefabricated compact substation unit is optimized for superior mechanical strength and natural convective cooling.
We apply a strict 100% pre-packing inspection to every prefabricated compact substation unit, ensuring zero defects and immediate plug-and-play functionality upon arrival at your site. Built in our award-winning "Digital Workshop," each prefabricated compact substation unit features smart automation interfaces that seamlessly connect with centralized remote monitoring systems. This integration aligns with our commitment to intelligent manufacturing, ensuring your operations benefit from real-time data tracking and predictive maintenance. Our extensive experience working with global industrial leaders guarantees that this substation unit will deliver stable, reliable performance even in extreme temperatures and high-humidity environments.
Specifications
|
Primary Rated Voltage |
10 kV / 11 kV / 12 kV |
|
Secondary Rated Voltage |
0.4 kV / 0.415 kV / 0.433 kV |
|
Standard Capacity Range |
100 kVA – 1250 kVA |
|
Insulation Material |
SF6 gas / Solid insulation / Air insulation |
|
Enclosure Type |
Double-layer insulated GRP (Glass Reinforced Polyester) or Al-Zn coated steel |
|
Cooling System |
Natural cooling with automatic temperature-controlled forced exhaust fans |
Application Areas
Wind Farms & Solar Photovoltaic Power Plants
Commercial Complexes & Retail Developments
Data Centers & Telecommunication Hubs
Temporary Power Grids for Large Construction Sites
Customization Capabilities
We specialize in custom engineering to meet diverse geographic and environmental conditions. We can design the prefabricated compact substation unit with specialized fire-resistant, explosion-proof, or anti-saline-corrosion enclosures. Clients can select customized internal switchgear configurations and protective relay systems from leading international brands or cost-effective domestic components.
Packaging & Shipping
We mount each unit onto heavy-duty steel bases and secure them inside protective wooden crates or robust steel transport frames. All sensitive digital control panels and meters are double-wrapped in anti-static, shock-absorbing materials. We handle all shipping terms, including EXW, FOB, and DDP, ensuring safe delivery directly to your project location.
FAQ
Q: Can we mix different configurations or colors within one order?
A: Yes, we support configuration mixing within a single order, allowing you to tailor different units for various on-site requirements while meeting our standard manufacturing terms.
Q: What is your monthly manufacturing capacity for these units?
A: Our monthly production capacity is 50 complete units/sets, which ensures we can easily accommodate large-scale project timelines and urgent delivery schedules.
