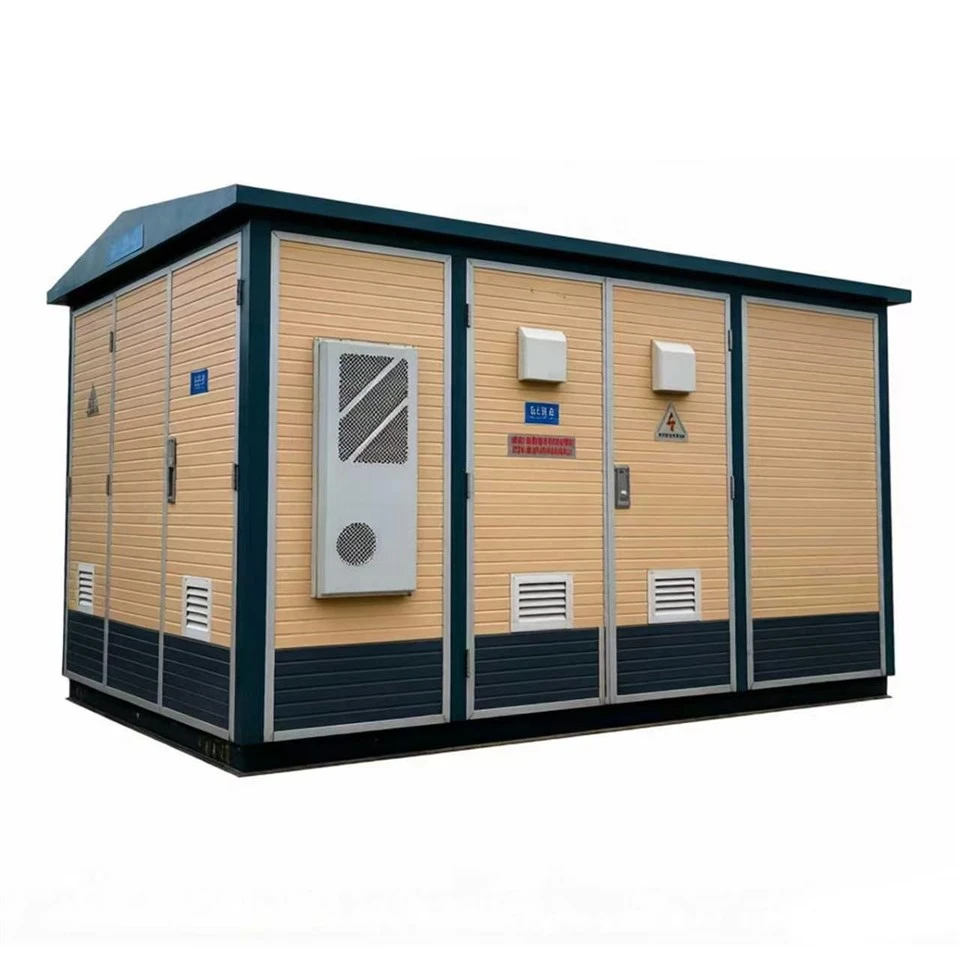

Product Description
With 20 years of experience in manufacturing complete power equipment, we have our own professional R&D team continuously optimizing the internal integrated structure of compact electrical substation system. Our factory is equipped with complete CNC sheet metal processing intelligent production lines, independently completing the entire process from enclosure fabrication to internal assembly.
Each compact electrical substation system undergoes three-level quality control procedures, including self-inspection, mutual inspection, and professional inspection. Every unit completes 100% full inspection before shipment, and third-party inspection is also supported. The complete system comes with a 1-year warranty.
With an annual output value of RMB 200 million, we have long-term cooperation with large domestic and international industrial and power enterprises, with mature OEM delivery experience for global leading brands. The highly integrated design of compact electrical substation system significantly reduces installation space requirements, making it suitable for overseas power distribution projects with limited installation areas.
We provide comprehensive OEM and ODM customization services. Any specification of compact electrical substation system can be adjusted according to customer engineering drawings or physical prototypes, including internal module layout and structural design.
Within MOQ requirements, customers can freely combine different power capacities and enclosure colors. Standard compact electrical substation system products can be delivered within 10 days, while customized units can be completed within 30 days. Delivery time can be shortened for repeat customers.
During production, we regularly provide real-time photos and videos to update overseas customers. EXW, FOB, and DDP trade terms are supported, with payment available in USD and RMB. Large-volume overseas distributor orders can negotiate tiered discounts, providing direct factory supply without additional middleman costs.
Specifications
|
Parameter |
Core Standard Parameters |
|
Product Name |
compact electrical substation system |
|
Rated Voltage |
12kV/0.4kV, 50Hz |
|
Integrated Capacity Range |
20kVA~1600kVA |
|
Protection Grade |
IP34/IP44 |
|
Enclosure Material |
Cold rolled anti-corrosion steel plate / 304 stainless steel |
|
Short-time Withstand Current |
16kA/2s |
|
Operating Environment |
-20℃~+45℃, altitude ≤2000m |
|
Warranty Period |
12-month complete unit warranty |
Applications
Power distribution points for urban old community renovation and high-density residential areas
Outdoor power distribution systems for distributed photovoltaic and small-scale wind power projects
Internal power supply facilities for small factories and logistics warehouses
Electrical supporting systems for overseas small shopping malls, kindergartens, and township clinics
Small power supply stations for road lighting and highway service areas
Customization Capability
Full OEM/ODM customization is available. We can adjust the integrated modules and enclosure dimensions of compact electrical substation system according to customer requirements.
Different capacities and enclosure colors can be freely combined within MOQ orders without separate production arrangements.
Customized moisture-proof, salt spray resistant, and low-temperature resistant enclosure coatings are available for different global climate environments.
Intelligent metering and remote communication modules can be optionally installed to support overseas smart grid projects.
Customized sample development is available. The development period depends on technical solution complexity, and samples are not provided free of charge.
Packaging & Shipping
The complete unit is packed in fumigated solid wooden export crates. High-density shockproof foam is used internally to isolate electrical components. Metal impact protection corners are installed on the enclosure edges to prevent damage during transportation.
The outer layer is wrapped with multiple layers of waterproof PE film to prevent marine humidity and salt spray corrosion. Product certificates, complete electrical inspection reports, and related documents are packed together before shipment.
The entire logistics process can be tracked in real time. If accessories are damaged after arrival, we will quickly provide replacement parts, and all related costs shall be borne by the responsible party.
FAQ
1. Can you customize compact electrical substation system with our drawings?
Yes, we support full OEM and ODM services. We can manufacture compact electrical substation system strictly according to your technical drawings or prototypes.
2. Will you conduct 100% inspection for compact electrical substation system before packing?
Yes, all compact electrical substation system products will pass complete 100% inspection of electrical performance and appearance before shipment.
3. How do you solve the problem of damaged goods on arrival?
We will replace damaged accessories free of charge, and all related expenses shall be borne by the responsible party.
